Understanding Kubernetes Networking

Kubernetes applications are built on containers, which are small, lightweight units of software. But how do these containers communicate with each other? That’s where Kubernetes networking comes in. Kubernetes networking is the underlying infrastructure that enables communication between containers and pods (a group of containers) within the cluster and outside of it.

A well-configured Kubernetes networking setup is essential for ensuring several key aspects of your containerized applications:

• High Availability: Ensures your application remains operational even if individual components fail.
• Scalability: Allows you to easily add or remove resources as your application’s needs change.
• Security: Protects your application from unauthorized access.

Kubernetes Networking Fundamentals

Before diving into different communication scenarios, let’s understand some essential Kubernetes resources: To understand how Kubernetes networking you must know the basic k8s resources like Pods, Service and Endpoints.

• Pods: The basic unit of deployment in Kubernetes. A pod contains one or more containers that share the same storage and network namespace.
• Services: Act as an abstraction layer for a group of pods. They provide a single entry point for applications to access these pods, regardless of their IP addresses or locations within the cluster.
• Endpoints: Represent the actual network addresses of pods that can be reached by a service. As pods are created or destroyed, the endpoints list is dynamically updated.

These resources come together to create various communication channels within a Kubernetes cluster.

Communication Scenarios in Kubernetes Networking

• Container-to-Container (Intra-Pod):
  • Mechanism: Pods share a single network namespace. This allows containers within the same pod to communicate directly with each other using localhost or container IP addresses.
  • Use Case: Ideal for tightly coupled containers that need to communicate frequently and share resources efficiently.
  • Ports: The ports where the application is running inside the container are specified in the deployment manifest. It’s important to note that two containers in the same pod cannot listen on the same port.
• Pod-to-Pod Networking:
  • Mechanism: Kubernetes assigns a unique Pod IP address to each pod. Pods can discover each other’s IP addresses through service discovery mechanisms like DNS or hostname resolution.
  • Use Case:  Essential for communication between loosely coupled microservices or applications within the cluster that are not necessarily co-located on the same node.
  • Finding Pod IP Addresses: Each pod has its own IP address assigned from the worker nodes’ internal IP range. You can use the kubectl get pods -o wide command to retrieve a pod’s IP address.
• Pod-to-service Networking:
  • Mechanism: Services act as a logical abstraction for pods. When you create a service, you define a selector that matches pods based on labels. The service then routes incoming traffic to the healthy pods that match the selector. Services can also handle scenarios where a pod has multiple containers running on different ports. The targetPort key in the service definition specifies which port on the pod the traffic should be directed to.
  • Use Case: Services enable pods to communicate with each other even when deployed across different nodes or namespaces within the cluster. This simplifies service discovery and makes deployments more scalable.
• External-to-service Networking:
  • Mechanism: There are various ways to expose services to the external network, depending on the type of service you choose and the level of access you want to provide. We’ll explore these service types in the next section.
  • Use Case: Used to allow external users or other services outside of your cluster to communicate with your application.

Types of K8s Services:

The type of service you choose determines how your service is exposed to the external network:

ClusterIP:

A service type that makes a service accessible only within the Kubernetes cluster. This is a default service and you don’t need to mention it during creation.

NodePort:

This service type exposes a service on a specific port on each node in the cluster. External clients can access the service by connecting to the node’s IP address and the exposed port. While NodePort services provide external access, it’s important to note that they expose cluster nodes directly, which can be a security concern.

LoadBalancer:

This service type uses a cloud provider’s load balancer to distribute traffic across multiple pods in your service. When you create a LoadBalancer service, Kubernetes automatically creates a NodePort service and a ClusterIP service in the background. You don’t need to define a node port; Kubernetes will assign one automatically. LoadBalancer services are generally preferred over NodePort services for production deployments due to improved security and scalability.

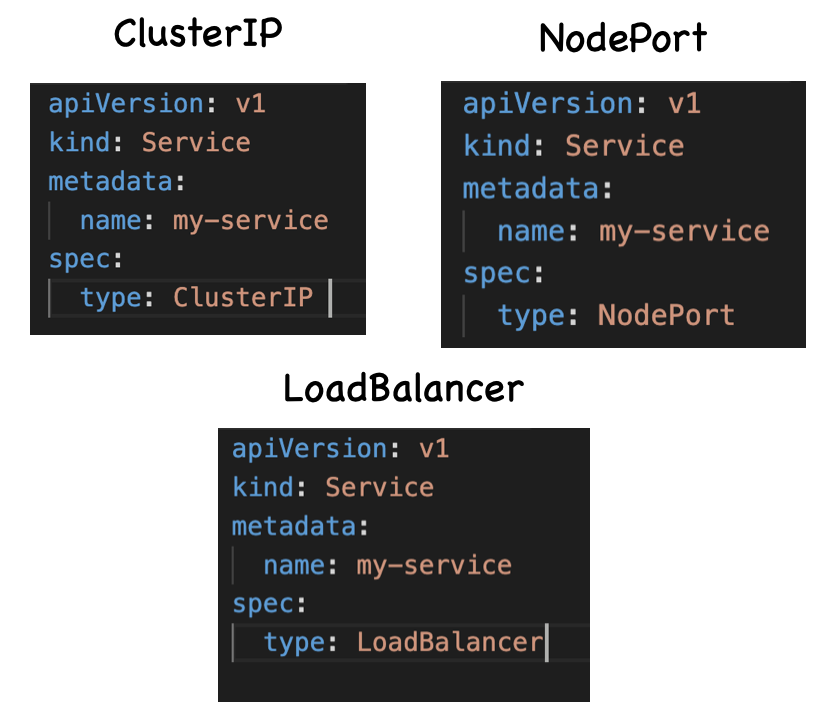

For LoadBalancer and Nodeport services, you need to specify the service type while defining the service.

Do checkout the video for more information and best practices of K8s networking. Please subscribe to the channel if you find the content useful.

Conclusion:

Kubernetes networking provides a robust and flexible framework for containerized applications. By understanding the different communication scenarios and service types, you can effectively configure your cluster to achieve high availability, scalability, and security for your applications. Whether you’re dealing with tightly coupled containers within a pod or loosely coupled microservices spread across the cluster, Kubernetes networking offers the tools you need to ensure seamless communication and efficient resource utilization. As your containerized deployments evolve, a solid grasp of Kubernetes networking principles will empower you to build and manage complex applications with confidence.
